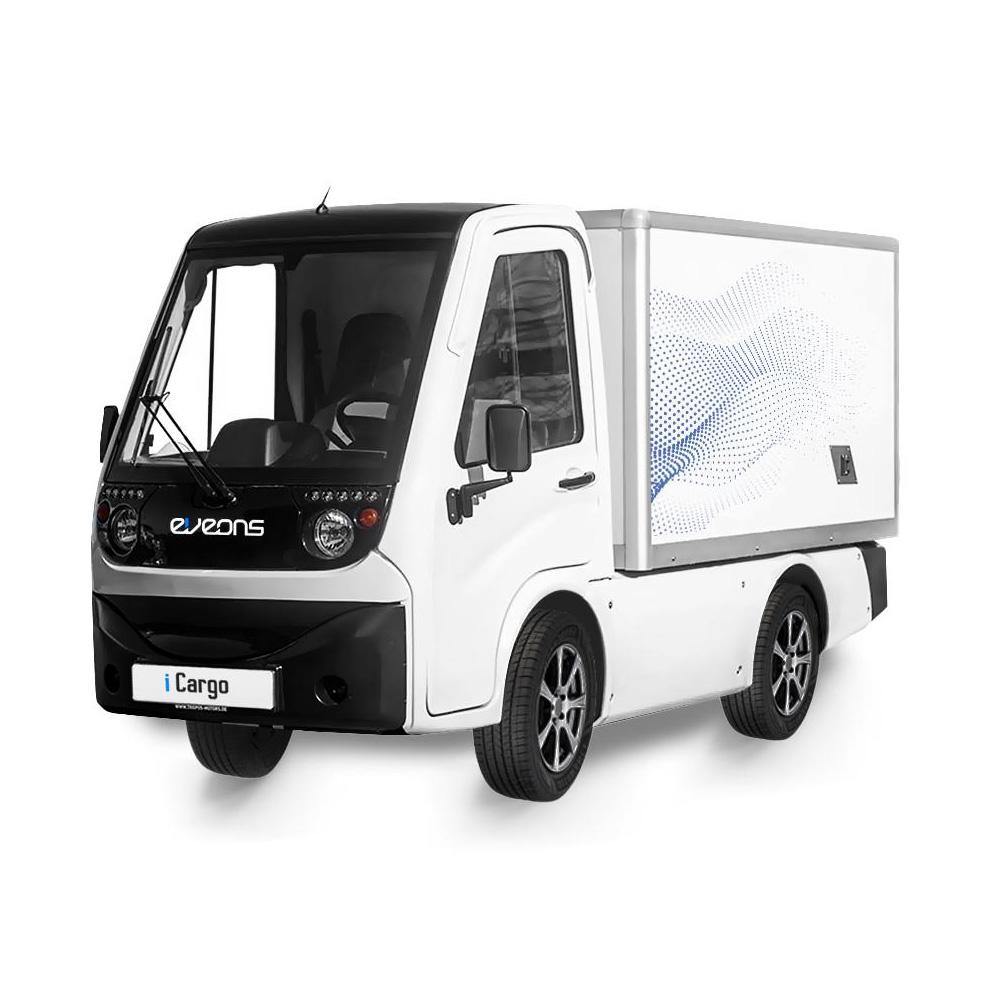

iCargo

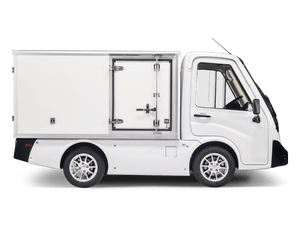

The CUV (compact utility vehicle) boasts dual 83V 13KW batteries and a 13KW motor. It offers a cargo space of 2270x1400x1200 mm and has a tight turning radius for navigating tight spaces. The wheel base measures 1800 mm and the net weight is 1070 kg, with a rated loading capacity of 500 kg. It is equipped with a 83V/1200W air conditioning system and has a top speed of 85 km/h and a range of up to 250 km. The CUV has a maximum gradeability of 20% and can accelerate from 0 to 100 km/h in less than 12 seconds.

• Dimensions: 3910x1400x1905mm
• Rated Voltage: 86.4V
• Maximum Loading: 500KG
• Gradeability: 20%
• Power Consumption: 2.7KW/H
• Range: up yo 250KM
• Top Speed: up to 85KM/H
• Front Absorber: Double-tube telescopic shock absorber
• Rear Absorber: Multi-link central shock absorber
• Front Brake Model: Bilateral 4 piston disc brake
• Front Tire: 175/65R14
• Rear Brake Model: Bilateral 4 piston disc brake
• Rear Tire: 175/65R14

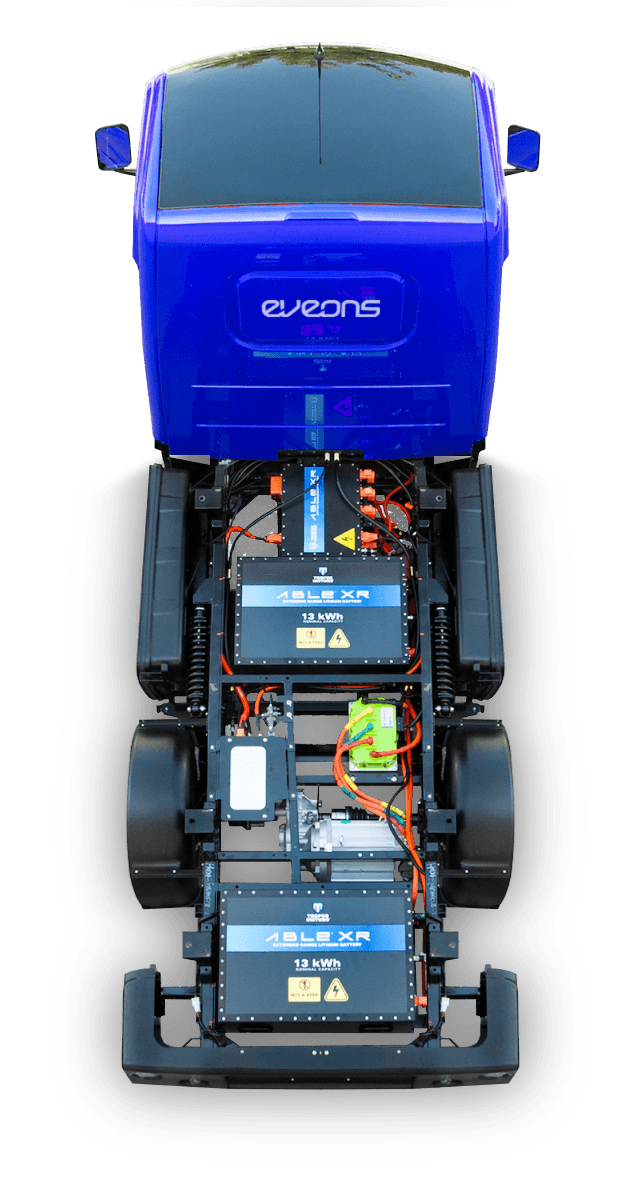

• Battery System: 18650 Ternary Lithium Battery x 2 each 13KW total 26KW
• Charging Current: 13A
• Charging Time: 10-12 Hours to full Charge
• Battery Protection System: over discharge protection short-circuit
• Motor System: MOS
• Rated Power: 13KW

• Warranty: 3 Years or 60,000KM

 Please click HERE to download the full technical specs as PDF file
