We have manufactured the iRider specially to accommodate all the demand on the ride-share and fleet inquiries for the most heavy-duty and easy to use and customize IoT-based scooter solution. With Swappable battery and integrated state-of-art IoT functionalities we can create and customize whatever you need.

• I Rider is Electric Scooter For Commercial & Sharing Heavy Duty Mobility Business With 4G IoT
• I Rider adopts the whole-vehicle internal wiring design & adopts a removable battery solution
• Equipped with 4G IOT module independently developed by EVEONS (MQTT & HTTP)
• Equipped with high-end full LED digital rider dashboard
• I Rider is IPX7 Water Proof certified

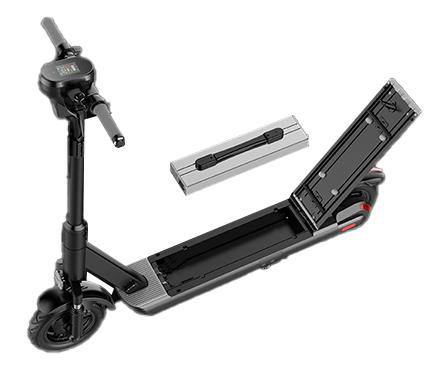

• I Rider offers removable Battery solution for demanding Businesses
• It offers dual suspension and 10" wide Air Tires
• The I Rider has automatic LED System integrated with the GPS mapping
• Kick Stand safety sensor
• Dual braking System for superior durability that demands less service intervals
• Optional front and back-end APP system & IoT dev.

Front Shock Absorber        √
Rear Shock Absorber         √
Front/Rear Tire Spec          10" Air Tire
Front Braking Mode           Drum Heavy Duty
Net Weight                         22KG
Min. Ground Clearance       90mm
Maximum Load                  120KG

Battery                                LG Swappable 48V 14.5AH

Speed                                 35KM/H

Range                                 55KM

Motor                                 500W Bafang

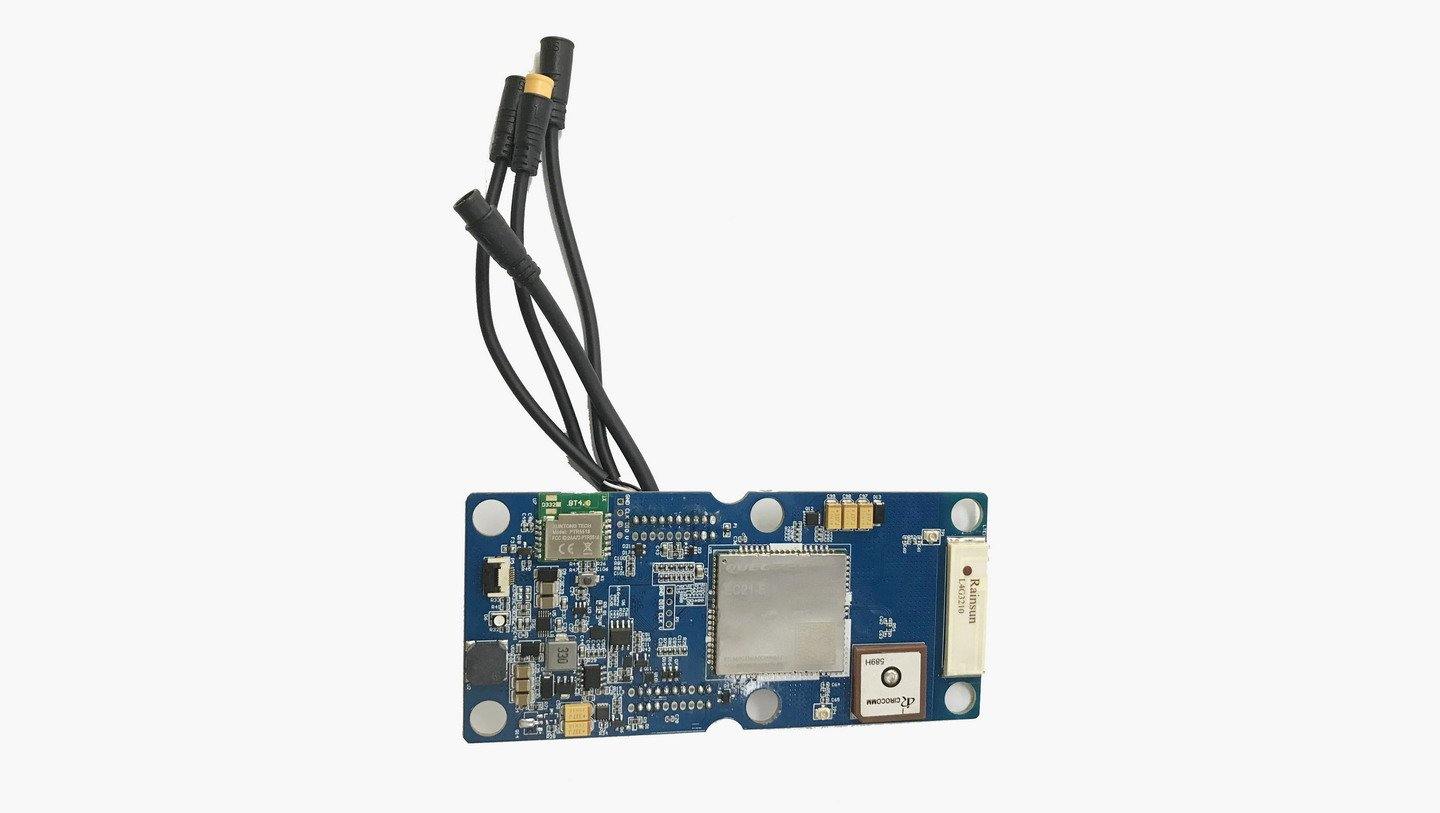

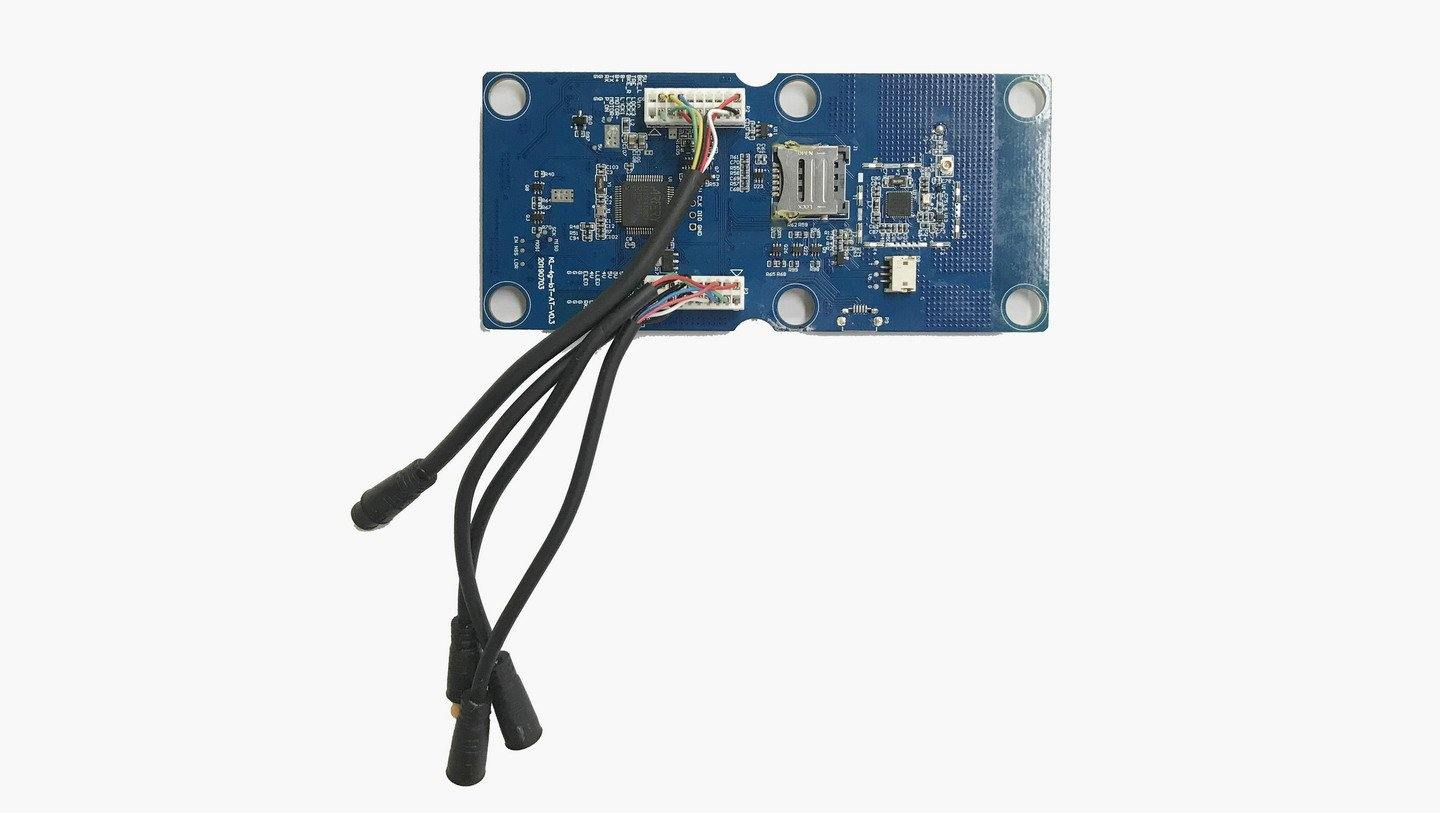

IoT module Feature
Scooter control	disable, enable, lock, speed limit, zero-speed-start, etc.
Multiple Alarms	Falling alarm, Vibration alarm for anti-theft, dismantle alarm etc.
Fault Alarm Message Upload to Server	support
Fixed Data Remotely Requested to Server	real time data, fixed information, setting information, the scooter SN, the battery SN, etc.
Communication multiple encryption	support(AES encryption, Dynamic token)
Main specification
Version	NB-IoT
Region	Global
Category	Cat NB1/Cat M1
Frequency	FDD-LTE: B1/B2/B3/B4/B5/B8 /B12/B13/B18/B19 /B20/B26/B28 TDD-LTE: B39 GSM:B2/B3/B5/B8
Data Rare(Max)	Cat M1: 375Kbps (DL), 375Kbps (UL) Cat NB1: 32Kbps (DL), 70Kbps (UL) EDGE: 296Kbps (DL), 236.8Kbps (UL) GPRS: 107Kbps (DL), 85.6Kbps (UL)
Output Power	Max. Power: 23dBm
GNSS	GPS/GLONASS/BeiDou/Galileo/QZSS
GNSS Sensitivity	Acquisition Autonomous -146 dBm Reacquisition Autonomous -157 dBm Tracking Autonomous -157 dBm
Location Accuracy	2.5m~15m
Protocol	MQTT
Bluetooth	BLE4.0
Gyroscope	Y
Accelerometer	Y
NFC	optional
Audio Play	optional
OTA	Y
Operating Temperature	-20°C ~ 70°C (-4°F ` 158°F)
Storage Temperature	-45°C ~ 80°C (-49°F ~ 176°F)
Interface	5pin: VBAT, GND, TX (TLL), RX (TTL), Power on
Input Voltage	12V~45V
Built-in Battery	3.7V/800mAh (Optional)



Please Click on the Spcs-icon to show the full technical specs.

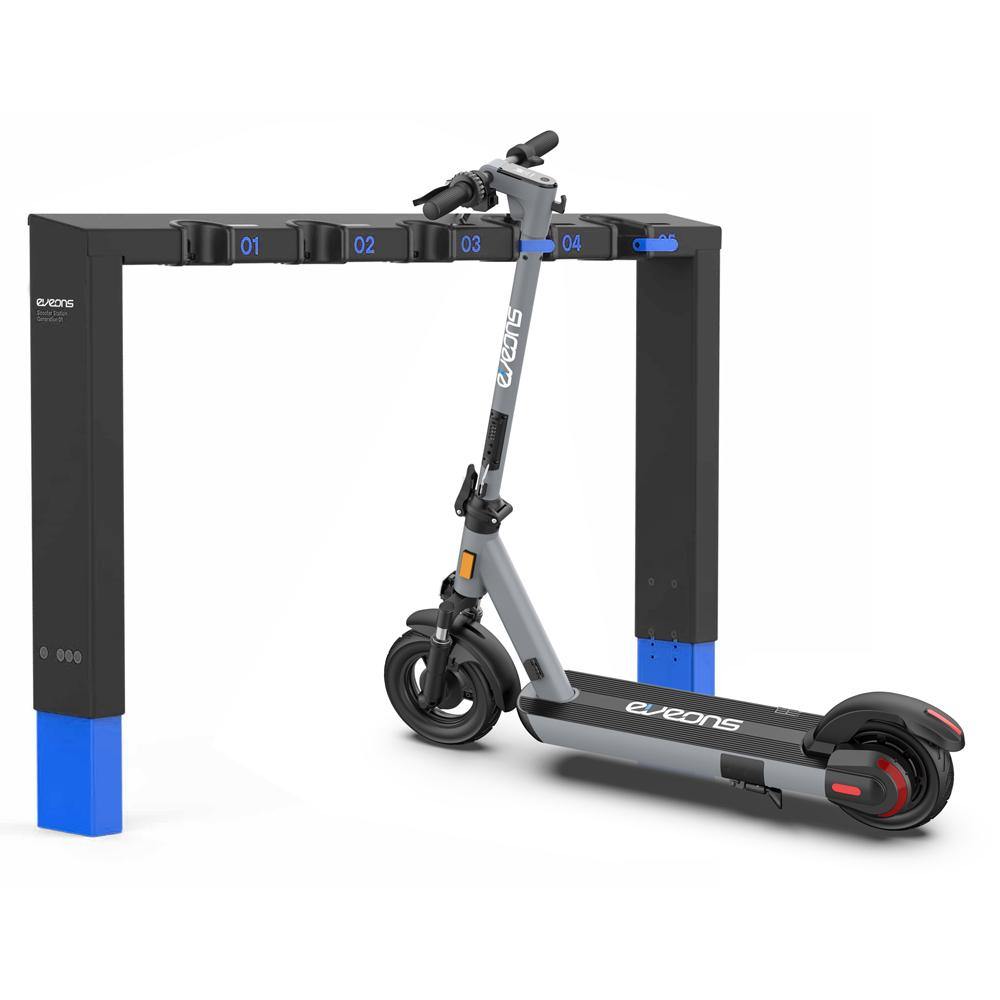

We offer a set of options, batteries, charging stations and customizations, please reach out with your inquiry to info@eveons.com and our technical sales will get in touch.
